Καταστροφέας μονού άξονα DYSSJ της JWELL
Τόπος καταγωγής: | Κίνα |
Μάρκα: | Jwell |
Πιστοποίηση: | ISO CE UL TUV |
Ανταγωνιστικό πλεονέκτημα: | Υψηλή ποιότητα, υψηλή χωρητικότητα, υψηλή σταθερότητα, παγκόσμια εξυπηρέτηση μετά την πώληση, περισσότερα από 30 χρόνια εμπειρία στην ανάπτυξη |
Εφαρμογές
All DYSSJ models have a standard pusher plate, which is more convenient for crushing large solid bodies or pallets, wood, etc.
Περιγραφή

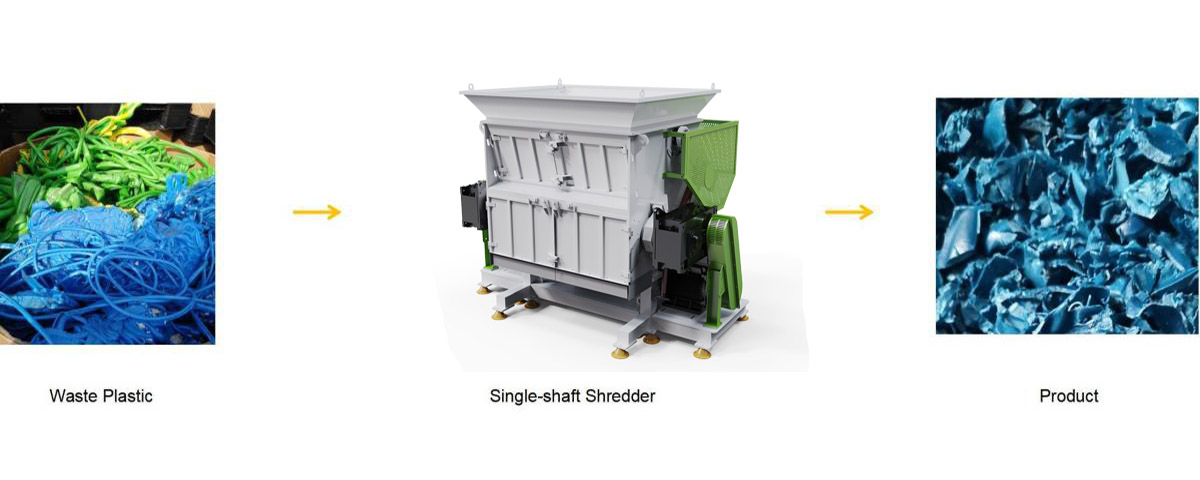

DYSSJ series shredder has the advantage of its strong push rod and the clever combination of heavy directional bearings to make the operation safe and reliable. Fully automatic crushing process, with beautiful design visual material window, can arbitrarily observe crushing effect and crushing dynamic process. At the same time DYSSJ series models can be designed according to the needs of different feeding hopper, suitable for batch feeding hopper can optimize production, because the pusher can continue to be crushed material pushed to the rotor, improve crushing efficiency, and will not cause too much feeding problems.
προδιαγραφές
ΜΟΝΤΈΛΟ | CRUSH CHAMBER MAX. SIZE (MM) | ΚΙΝΗΣΗ ΙΣΧΥΣ (KW) | ROTOR BLADE QUANTITY (PIS) | FIXED BLADE QUANTITY (PIS) | ΔΙΑΜΕΤΡΟΣ ΚΑΛΑΝΤΕΡΗΣ ΛΕΠΙΔΑΣ ΡΟΤΟΡ (MM) | ΤΑΧΥΤΗΤΑ ROTOR (RPM) |
DYSSJ- 850 | 700 730 * | 37 | 60 | 3 2 * | Φ435 | 37 |
DYSSJ- 1500 | 800 1290 * | 75 | 102 | 5 2 * | Φ505 | 37 |
